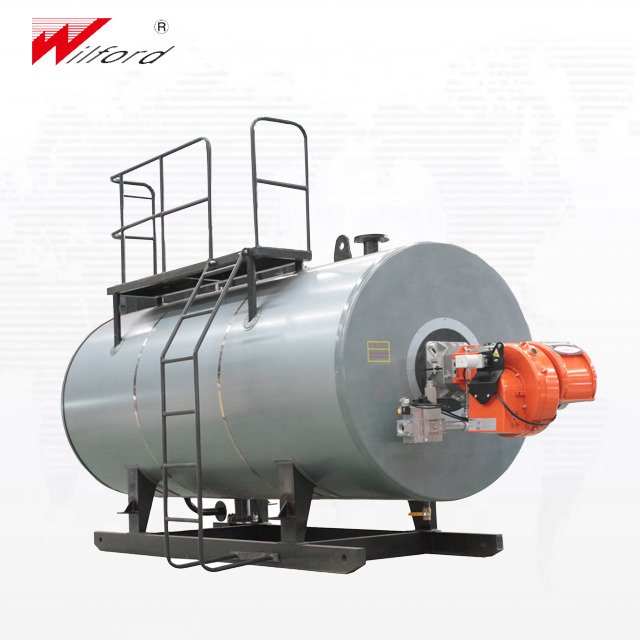

Home Appliance Horizontal Fire Tube Diesel Fuel Hot Water Boiler

1.0 set
MOQ
Home Appliance Horizontal Fire Tube Diesel Fuel Hot Water Boiler
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Applicable Industries: Hotels, Garment Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: Other
Condition: New
Type: Natural Circulation
Usage: Industrial
Structure: Fire Tube
Pressure: Low Pressure
Style: Horizontal
Fuel: Gas-fired
Output: HOT WATER
Dimension(L*W*H): Dpend
Weight: Dpend
Warranty: 1 Year
Key Selling Points: Long Service Life
OPERATION: AUTO
efficiency: high
safety: yes
green: yes
Product name: Home appliance horizontal fire tube gas oil hot water boiler
After Warranty Service: Online support, Spare parts, Field maintenance and repair service
Local Service Location: None
After-sales Service Provided: Engineers available to service machinery overseas
Сертификация: ISO,CE
Основная информация
Сертификация: ISO,CE
Оплата и доставка Условия
Packaging Details: plywood case,steel frame,carton,naked
Supply Ability: 10 Perch/Perches per Month
Характер продукции
Product Description

Home appliance horizontal fire tube gas oil hot water boiler

Product Description

1. CWNS series hot water boiler is three-pass all wet back shell type structure.Main body includs boiler shell, furnace, boiler smoke chamber and convection bank. convection smoke tube is made by threaded pipes, enhance heat transfer."

2. Big furnace , high radiation area,three return design, full air combustion, good usage of heating surface.Smoke tubes add disturb fins inside , increasing heating area , self-clean for dust ,improving heat transfer effectiveness. Using high thermal resistance of insulation materials-minimum boiler heat losses.

3. More than 90% thermal efficiency. Intelligent,fully automatic control, over-temperature stand by. Anti-freezing in cold winter night,automatic adjust heating supply temperature base on out door temperature ,which , maximum achieve energy saving ."

4. Imported burner ,pressure spray ,complete burning ,low noise .Reduced combustion intensity ,decrease dust emissions ,output of harmful gases such as NOx emissions reduced to the minimum, meet serious environmental requirements."

5. Pressure connecting structure, safe, reliable, long service life. Multiple chain protection and self-test such as -over temperature ,water shortage ,overload, ignition failure, abnormal flameout, gas leakage. Expansion water tank directly connect to atmosphere,no potential safety problems under atmospheric pressure operation."

Technical Parameters

Type CWNS0.7-95/70-Y.Q CWNS1.05-95/70-Y.Q CWNS1.4-95/70-Y.Q CWNS1.75-95/70-Y.Q CWNS2.1-95/70-Y.Q CWNS2.8-95/70-Y.Q
Project Unit
Rated thermal power MW 0.7 1.05 1.4 1.75 2.1 2.8
Total heat capacity 104kcal 60 90 120 150 180 240
Rated working pressure MPa Ordinary pressure

Fuel

consumption

 Light diesel oil kg/h 65 97.5 130 162 195 260
Natural gas Nm3/h 70 105 140 175 210 280
LPG Nm3/h 30 45 60 75 90 120
City gas Nm3/h 170 255 340 425 510 680
Water inlet diameter DN 100 125 150 150 200 200
Water outlet diameter DN 100 125 150 150 200 200
Blowoff valve diameter DN 50 50 50 50 65 65
Voltage V 380 380 380 380 380 380

Overall size		 Length mm 3020 3230 3650 4100 4550 5600
Width mm 1700 1750 1820 1890 1930 2000
Height mm 1880 1960 2050 2100 2150 2270
Weight kg 2450 2780 3500 3860 4520 6300
