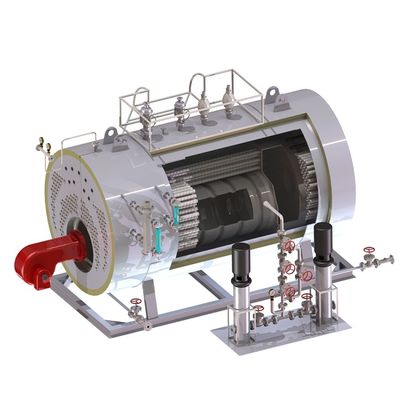

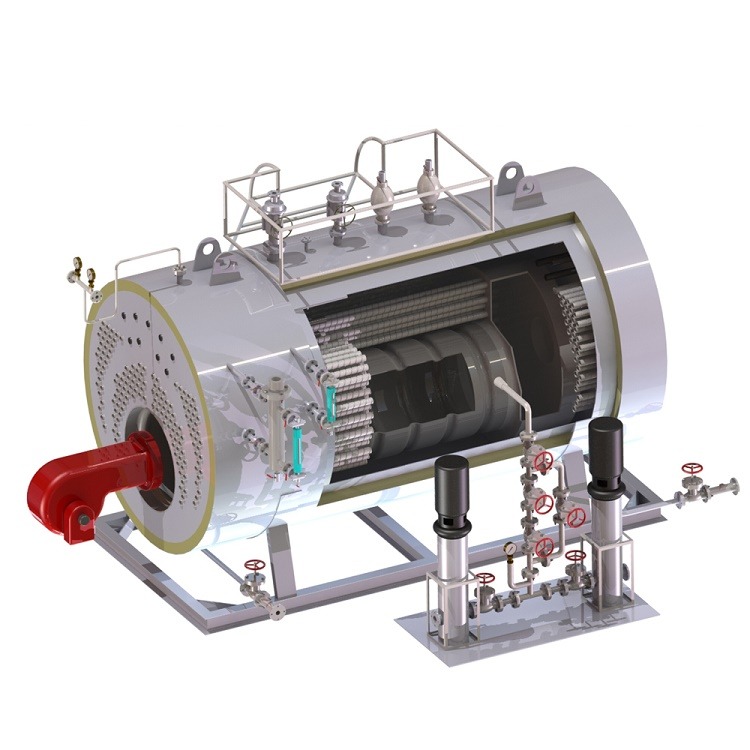

Textile Industry 1mw-10mw Horizontal Industrial Use Natural Gas Steam Boiler

1.0 set
MOQ
Textile Industry 1mw-10mw Horizontal Industrial Use Natural Gas Steam Boiler
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Food Shop, Food & Beverage Shops
Showroom Location: Indonesia, Pakistan, Thailand
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: burner: SAACKE, RIELLO, BALTUR
Condition: New
Type: Natural Circulation,Three Pass, horizontal
Usage: Industrial
Structure: Fire Tube
Pressure: Low Pressure
Steam Production: steam
Style: Horizontal,Vertical
Fuel: natural gas,diesel oil,LNG,heavy oil,, natural gas, heavy oil, light oil, etc.
Output: steam or hot water
Dimension(L*W*H): depends on capacity
Weight: depends on capacity
Warranty: 1 Year
Key Selling Points: high efficiency and stable
Burner: Imported from Europe
Efficiency: Around 95%
Spare parts: Two years
Certificate: GB, ASME, DOSH, etc.
Working Pressure: 1.0MPa
Emission: Environment Friendly
Manufacturer: Chinese A level
Основная информация
Сертификация: GB, ASME, DOSH, etc.
Оплата и доставка Условия
Packaging Details: Boiler Equipment for WNS Steam Gas Fired Boiler: Wood case, Steel case
Supply Ability: 800 Set/Sets per Year textile industrial steam boilers
Характер продукции
Product Parameters
Model
0.5
0.5
1
1.5
2
3
4
Rated capacity（t/h）
0.5
0.5
1
1.5
2
3
4
Rated working pressure(MPa)
0.7
1
0.70 / 1.0 / 1.25 MPa
Rated feedwater temperature
20℃
Saturated steam temperature(℃)
170.4
184.1
170.4 / 184.1 / 193.4
Design efficiency
≥ 93%
Adaptable fuel
Light oil, natural gas
Oil consumption（kg/h）
34.4
34.7
68.1
100
134.8
202.4
268.4
Natural gas consumption（Nm3/h）
41.9
42.3
82.6
121.3
163.6
245.7
325.8
Pressure drop of flue gas side（mbar）
5.33
5.75
8.4
9.3
10.2
12.3
16
Boiler water volume（m3）
0.96
1.36
2.86
3.11
3.35
5.02
5.88
Boiler net weight（kg）
1880
2710
4120
4750
5380
7140
8150
Power consumption(kw)
(oil fired)
1.45
1.8
3.2
3.5
6.2
10.7
14.4
Power consumption(kw)
(gas fired)
1.45
1.8
3.2
3.5
10.7
10.7
15.2
Steam outlet specification
DN40
DN40
DN50
DN65
DN80
DN80
DN100
Safety valve specification
DN40
DN40
DN40x2
DN40x2
DN40x2
DN40x2
DN50x2
Water inlet specification
DN25
DN25
DN25
DN25
DN25
DN32
DN40
Drainage valve specification
DN40
DN40
DN40
DN40
DN40
DN40
DN50x2
Details Images


                       1.Safety
PLC control cabinet will be set to monitor the boiler operating parameter and combustion
device,and it can adjust boiler operation according to the set procedure.
2.Efficiency
Self-developed economizer will be used,and the efficiency can be over 95%

        3.Environmental Protection
World famous burner with high combustion efficiency will be used.Flue gas will be burned in big furnace for complete combustion,which will reduce the emission of harmful substance.
Low furnace heat load can reduce the
emission of NOX which is good for environmetal protection. The economizer matched can reduce the fuel combustion and save around 10% of fuel for user.
Advanced Production Equipment

1.Appropriate welding equipment to ensure product quality and improve efficiency
2.Sophisticated production process

3.Scientific and reasonable design concept

4.Advanced CNC equipment is the guarantee of quality
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Qingdao Enneng Machinery Co., Ltd. (Enneng) is located at Qingdao, China, specialized in design, research and fabrication at environment-friendly boiler. The products and service include coal water slurry boiler, biomass boiler, gas and oil fired boiler and boiler revamping.
The company’s Chinese domestic market share for coal water slurry boiler are more than 65% and has exported to Indonesia, Nigeria,etc. And we also exported various kinds of biomass boilers to Southeast Asia countries including Indonesia and Thailand for biomass power station. The biomass boilers we have supplied include waste wood boiler, bagasse boiler, biomass mixed with coal boiler etc.
Various capacity of gas and oil boilers are widely used in Chinese oil field, gas company and various enterprises.
Enneng cherishes the trust from every customer. We always hold that the quality of product and customer's trust are the foundation of the company. Enneng believes that signing the purchase order is not the benchmark of marketing success, while catering to customers beyond the achievement of sales target through its after-sales and getting the praise from customer is the success of us.
Factory Show
Customer Photos
FAQ
Q. What are the characteristics of WNS fuel gas boiler?
A：Fully automatic , three-pass, high efficiency, strong adaptability to load, muti-level chain protection for safety
Q. What are the water quality requirements for fuel gas boilers?
A: The water quality standard should be according to the China “Industrial Boiler Water Quality Standard” GB/T1576-2018 or not lower than this standard.
Q. Is the fuel gas boiler easy to install?
A: The installation and commissioning of the WNS boiler is very simple, and it can be installed and commissioned in accordance with the instruction manual. Our company will provide various debugging guidance. At the same time, we also have a skid-mounted boiler, for this structure of the boiler, just connect the pipeline to use.
Q.:How about the quality of the boiler?
A: Boiler production uses high-quality raw materials, directional procurement, full quality inspection, advanced production lines to ensure the normal operation of the quality assurance system, high-level welding technology and advanced welding equipmentto ensure the quality of each welding. Products are exported to Spain, Indonesia, Pakistan, Nigeria, Thailand and other countries and regions, and are well welcomed.
Q:Efficiency of fuel gas boiler:
A: The efficiency of boilers with economizers is up to about 95%
Q:Boiler burner brand
A: German SAACKE burner, RIELLO, BALTUR Italian brand burners
Q: How long is the warranty of the boiler
A: Generally speaking, the warranty is 12 months after leaving the factory. Provide various online service guidance. And visit customers regularly every year.
