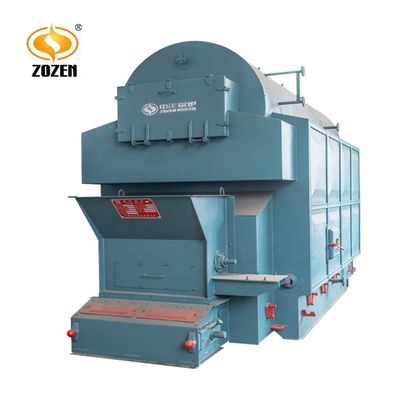

Horizontal Fire Water Tube 1.25 Mpa Coal Wood Biomass Pellet Steam Boiler 4 T/H

1.0 Sets
MOQ
Horizontal Fire Water Tube 1.25 Mpa Coal Wood Biomass Pellet Steam Boiler 4 T/H
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Com
Showroom Location: Turkey, Viet Nam, Philippines, Indonesia, Pakistan, Mexico, Russia, Thailand, Morocco, Kenya, Sri Lanka, Bangladesh, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Malaysia, Australia
Video outgoing-inspection: Provided, Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: water tube
Condition: New
Type: Natural Circulation
Usage: Industrial
Structure: Water and Fire Tube
Pressure: Low Pressure
Steam Production: Max. 4t/h
Style: Horizontal
Fuel: biomass,rice husk, pellet,coal
Output: Steam
Dimension(L*W*H): 6.6*2.6*3.6m
Weight: 30 ton
Warranty: 1 Year
Key Selling Points: Long Service Life
Product name: DZL Coal Biomass fired Steam Boiler
Rated steam capacity: 2ton, 4ton, 6ton
Rated working pressure: 1.0Mpa, 1.25Mpa, 1.57Mpa, 2.45Mpa
Thermal efficiency: 79%
Operation: Fully Automatic Control
Advantages: Top 1 A-Class Boiler
Quality: 100% Tested
Manufacturer: 30 Years History
Color: Customer's Requirement
Основная информация
Оплата и доставка Условия
Packaging Details: 1.Boiler body part is in nude packing with protection film outside 2.Accessories are in export-use wooden box. the wooden box will be fumigated. 3.We can customize the exclusive packaging according to customer requirements. 4. All goods will be professio
Supply Ability: 1000 Set/Sets per Year
Характер продукции
Product Description

Fire Water Tube 4 t/h 1.25 MPa Coal Biomass Wood Pellet Steam Boiler


DZL series package boilers are horizontal three-pass water & fire tube boilers with a chain grate stoker structure. Threaded pyrotechnic tubes are arranged in the drum to form a convection heating surface, while the drum and the water walls on both sides form a radiation heating surface in the furnace. Each package system is fully installed and wired before being transported to site and is electrically controlled to provide functions such as stepless speed regulation for the stoker, threshold parameter alert and interlock protection.

Product thermal capacity: 2 - 20t/h
Working pressure: 1 - 2.5 MPA (10 bar - 25 bar)
Outlet temperature: 170 - 225 ℃
Available fuel: Biomass particles, rice husk, wood chips, palm shells, wood chips, straw, coal and etc
Available industries: Heating, chemical, food, tobacco, textile, printing and dyeing, feed, medicine, building material, wine, rubber, hospital
DZL Series Coal/Biomass Fired Steam Boiler Advantage
1. DZL series steam boiler is a single boiler tube vertical layout horizontal water fire tube fast installed chain grate boiler. Compact structure, small floor space, short installation cycle, low cost, low investment.
2. Adopt multiple interlock protection device to ensure safe and reliable operation of boiler.
3. This series of biomass fired boiler low exhaust temperature and high thermal efficiency.
4. It can match various kinds of dust removal equipment and can meet the environmental protection requirements of different countries.
5. Good combustion conditions, full combustion, and wide adaptability to fuel, can adapt to a variety of biomass fuels.
1. Wide fuel adaptability;
2. Customized solutions save money and time;
3. Higher thermal efficiency;
4. High level of automation;
5. Advanced cotroal system;
Product Paramenters
Model
Rated thermal power（t/h/MW）
Rated working pressure（MPa）
Steam temperature/Rated output water temperature（℃）
Thermal efficiency（%）
DZL2-1.25-M
2/1.4
1.25
194
79
DZL2-1.57-M
2/1.4
1.57
204
79
DZL2-2.45-M
2/1.4
2.45
225
79
DZL4-1.25-M
4/2.8
1.25
194
79
DZL4-1.57-M
4/2.8
1.57
204
79
DZL4-2.45-M
4/2.8
2.45
225
79
DZL6-1.25-M
6/4.2
1.25
194
79
DZL6-1.60-M
6/4.2
1.6
204
79
DZL10-1.25-M
10/7
1.25
194
79
DZL10-1.60-M
10/7
1.6
205
79
DZL15-1.25-M
15/10.5
1.25
194
79
DZL15-1.60-M
15/10.5
1.6
205
79
DZL20-1.25-M
20/14
1.25
194
79
DZL20-1.60-M
20/14
1.6
205
79
Typical Projects
Product packaging
Our Advantages
Wuxi Zozen Boilers Co., Ltd., which was founded in 1988, is now one of the most influential boiler manufacturers in China with a manufacturing base covering hundreds of thousands of square meters. It ranks top in the industrial boiler sector in Asia in terms of the variety of its products, the level of automation in its manufacturing facility and the volume of its production.
Nowadays, ZOZEN’s products have been exported to more than 100 countries and regions around the world and are widely used for application in urban central heating, heating for large residential areas, heating for large factories and mining enterprises, heating for the breeding industry and fruit and vegetable greenhouses, etc.
