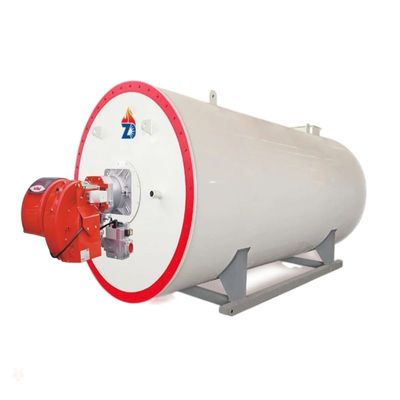

Horizontal Diesel Oil Fired Thermal Boiler For Textile Industry - Buy Thermal Oil Heating Boiler

1.0 Units
MOQ
Horizontal Diesel Oil Fired Thermal Boiler For Textile Industry - Buy Thermal Oil Heating Boiler
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Showroom Location: Philippines, Pakistan, Bangladesh, Uzbekistan
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 2 years
Core Components: Pump Water Treatment
Condition: New
Type: Natural Circulation
Usage: Industrial
Structure: no
Pressure: Low Pressure
Steam Production: Max. 30t/h
Style: Horizontal
Fuel: Gas-fired
Output: NO
Dimension(L*W*H): Refer to the model
Weight: Refer to the model
Warranty: 2 years
Key Selling Points: Automatic and high efficiency
Product name: Oil Steam Boiler
Thermal efficiency: 95%
Design fuel: OIL GAS
Application field: Building Materials
Application: Industrial Production
Steam temperature: 194 (accept Customization)
Material: Special Boiler Steel Plate
Working Pressure: 1.0-2.5 MPa
Keywords: Gas Fired Boiler
Основная информация
Оплата и доставка Условия
Packaging Details: Export standard packaging or costomed
Supply Ability: 5000 Unit/Units per Year
Характер продукции
Product Description
1. The heat exchange surface of the boiler adopts spiral dense discharge coil structure and three return structure of flue gas. Optimize space heat transfer intensity and strengthen convective heat transfer. 2. The heating surface is composed of double-layer or multi-layer spiral closely arranged coils. The inner coil is a combustion radiation heat exchange surface, and the gap between the inner coil and the middle coil or the outer coil forms a hot flue gas heat exchange surface. 3. Air heat exchanger or water / steam heat exchanger can be arranged at the tail of the boiler for waste heat absorption. The heating area is sufficient to reduce the exhaust gas temperature of the boiler and improve the thermal efficiency of the boiler. 4. High quality refractory and thermal insulation materials are used, which have high heat resistance, good thermal insulation effect, reduce heat loss and improve thermal efficiency. 5. The boiler heat exchange structure is matched with the burner to achieve high combustion efficiency and low pollutant emission, so as to ensure that NOx emission meets the environmental emission requirements of the place where the boiler is used.
Model YYW/YQW Rated Thermal Power 120-29000 KW
Design Pressure 1.1 Mpa
Working Pressure 0.8 Mpa
Medium Outlet Temperature ≤350 C
Fuel Light Oil,Heavy Oil,Natural Gas,Lpg,Lng,Cng,Diesel etc Application
Chemical,Oil,Petrochemical,Textile,Printing,Rubber,Carton,Plywood,Asphalt,Cement, etc
Product Datasets
MODEL
YY(Q)W- 120Y(Q)
YY(Q)W- 240Y(Q)
YY(Q)W- 350Y(Q)
YY(Q)W- 500Y(Q)
YY(Q)W- 700Y(Q)
YY(Q)W- 1000Y(Q)
YY(Q)W- 1200Y(Q)
YY(Q)W- 1400Y(Q)
Rated power(KW)
120
240
350
500
700
1000
1200
1400
Design pressure(Mpa)
1.1
Rated working pressure(Mpa)
0.8
Highest working temperature(℃)
320
Furnace oil volume(m3/h)
0.1
0.21
0.3
0.4
0.56
0.8
1.0
1.3
Circulation oil
volume(m3/h)
9.6
19.4
28
32
60
65
80
90
Pipe connection diameter(DN)
40
50
80
80
100
125
125
125
Thermal Efficiency (%)
～95
Size (m)
1.6x1.1
x1.52
2.5x1.4
x1.5
2.56x1.53x1.57
2.8x1.68
x1.68
3.24x1.47
x2.26
3.39x1.75
x2.36
4.07x2.1
x2.2
4.53x2.4
x2.35
Weight (T)
2
2.9
3.7
4.5
4.9
5.5
6.5
7.5
MODEL
YY(Q)W- 1800Y(Q)
YY(Q)W- 2100Y(Q)
YY(Q)W- 2400Y(Q)
YY(Q)W- 3000Y(Q)
YY(Q)W- 3500Y(Q)
YY(Q)W- 4200Y(Q)
YY(Q)W- 4700Y(Q)
YY(Q)W- 6000Y(Q)
Rated power(KW)
1800
2100
2400
3000
3500
4200
4700
6000
Design pressure(Mpa)
0.9
Rated working pressure(Mpa)
0.8
Highest working temperature(℃)
320
Furnace oil volume(m3/h)
1.5
1.7
2
2.4
3
4
4.5
7.8
Circulation oil
volume(m3/h)
100
120
160
200
200
220
250
320
Pipe connection diameter(DN)
150
150
150
150
200
200
200
250
Thermal Efficiency (%)
～95
Size (m)
4.4x2.05
x2.45
5.1x2.2
x2.5
5.2x2.4
x3.0
5.83x2.94
x3.1
6.1x3.02
x3.2
7.0x2.63
x3.2
7.6x3.1
x3.2
8.3x3.2
x3.4
Weight (T)
10
11.5
12.5
18.5
19.5
22
26
30
MODEL
YY(Q)W- 7000Y(Q)
YY(Q)W- 8200Y(Q)
YY(Q)W- 9400Y(Q)
YY(Q)W- 10500Y(Q)
YY(Q)W- 12000Y(Q)
YY(Q)W- 14000Y(Q)
YY(Q)W- 18000Y(Q)
YY(Q)W- 23500Y(Q)
Rated power(KW)
7000
8200
9400
10500
12000
14000
18000
23500
Design pressure(Mpa)
0.9
Rated working pressure(Mpa)
0.8
Highest working temperature(℃)
320
Furnace oil volume(m3/h)
9.1
10.5
12
14
16
18
24
32
Circulation oil
volume(m3/h)
375
400
520
550
600
680
1000
1200
Pipe connection diameter(DN)
250
250
300
300
300
350
400
400
Thermal Efficiency (%)
～95
Size (m)
9.24x3.9
x3.5
5.1x2.2
x2.5
5.2x2.4
x3.0
5.83x2.94
x3.1
6.1x3.02
x3.2
7.0x2.63
x3.2
7.6x3.1
x3.2
8.3x3.2
x3.4
Weight (T)
42.5
11.5
12.5
18.5
19.5
22
26
35
Product manufacturing process
Application & Boiler case

Applicable industry Chemical industry, grease, petrochemical, textile, printing and dyeing, plastics, rubber, fiber, carbon, construction, cement, asphalt, metal, coating, wood processing, papermaking and printing, atomic energy industry, etc.

6 MKcal Heat transfer oil boiler

Fuel: Gas User’s site: Malaysia Capacity: 7000KW Application: Packing industry

4 MKcal Heat transfer oil boiler

Fuel: Gas User’s site: Indonesia Capacity: 4700KW Application: Synthetic fiber industry

2.5 MKcal Heat transfer oil boiler

Fuel: Gas User’s site: Pakistan Capacity: 3000KW Application: Coking industry

1.8 MKcal Heat transfer oil boiler

Fuel: Gas User’s site: Vietnam Capacity: 2100KW Application: Rubber industry

0.6 MKcal Heat transfer oil boiler

Fuel: Oil User’s site: Thailand Capacity: 700KW Application:Asphalt mixing

5 MKcal Heat transfer oil boiler

Fuel: Gas User’s site: Philippines Capacity: 6000KW Application: wood industry
