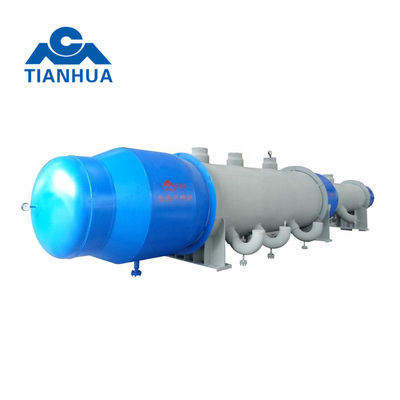

Natural Circulation Environmental Protection Equipment Waste Heat Recovery Steam Generator WHB Waste Heat Boiler

Natural Circulation Environmental Protection Equipment Waste Heat Recovery Steam Generator WHB Waste Heat Boiler
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Основная информация
Оплата и доставка Условия
Характер продукции
Products Description
Flexibility Thin Tubesheet Waste Heat Boiler
Waste heat recovery system designed&supplied by Tianhua Institute of Chemical Machinery & Automation Co.,Ltd has been successfully promoted in methanol unit and ammonia unit for hundreds, after years of use, complete sets of equipment of the application effect is good, the application performance is enough to prove that the domestic technology level and supply ability of complete sets of equipment is reliable.the waste heat boiler technology developed by our institute has more than 300 sets of applications in the production plant, some of them are exported abroad, and the profits are remarkable. After years of engineering applications, the quality is reliable, fully meet the user's production requirements.The WHB system includes waste heat boiler, steam drum, regulating valve and their accessories the overall designed and supplied.
Product Paramenters
The tubesheet using flexibility thin tubesheet,
Hot-end channel using double-insulated material,
The highest gas-inlet temperature :1350 ℃,
Maximum pressure: 12.6MPa,
Diameter: φ1000 ~ φ3200mm,
By-product of the saturated steam moisture content ≤ 0.05% (wt),
The whole WHB system is very reliable.
Application areas:
Mainly used in methanation, methanol, hydrogen,ethylene, synthetic ammonia, sulfur recovery unit and other unit.
Name
Application




Waste heat boiler
Coal-to-liquids
Coal-to-gas methanation
Sulfur recovery
Methanol waste heat boiler
Synthesis ammonia
LNG coke-oven gas to LNG
Steam drum
With waste heat boiler, it is a waste heat recovery system.
Reactor
Coal-to-gas methanator
Incinerator
Sulfur recovery
Waste Heat Boiler
Structural
 Horizontal
 Vertical
Recycle design
Natural circulation
Tube sheet
Thin Tube Sheet
Industry position
 Domestic leading, international advanced.
Advantage
1.Stable operation, safe and reliable.
2.Stress analysis and design of flexible thin tube sheet.
3.Particular numerical calculation of high temperature inlet temperature     field of heat exchange tube and Thermal protection design.
4.Particular design of water supply distribution device.
5.Other designing&manufacturing key technologies.
Synonym
Waste heat boiler,WHB, Waste heat recoverer, Steam generator
